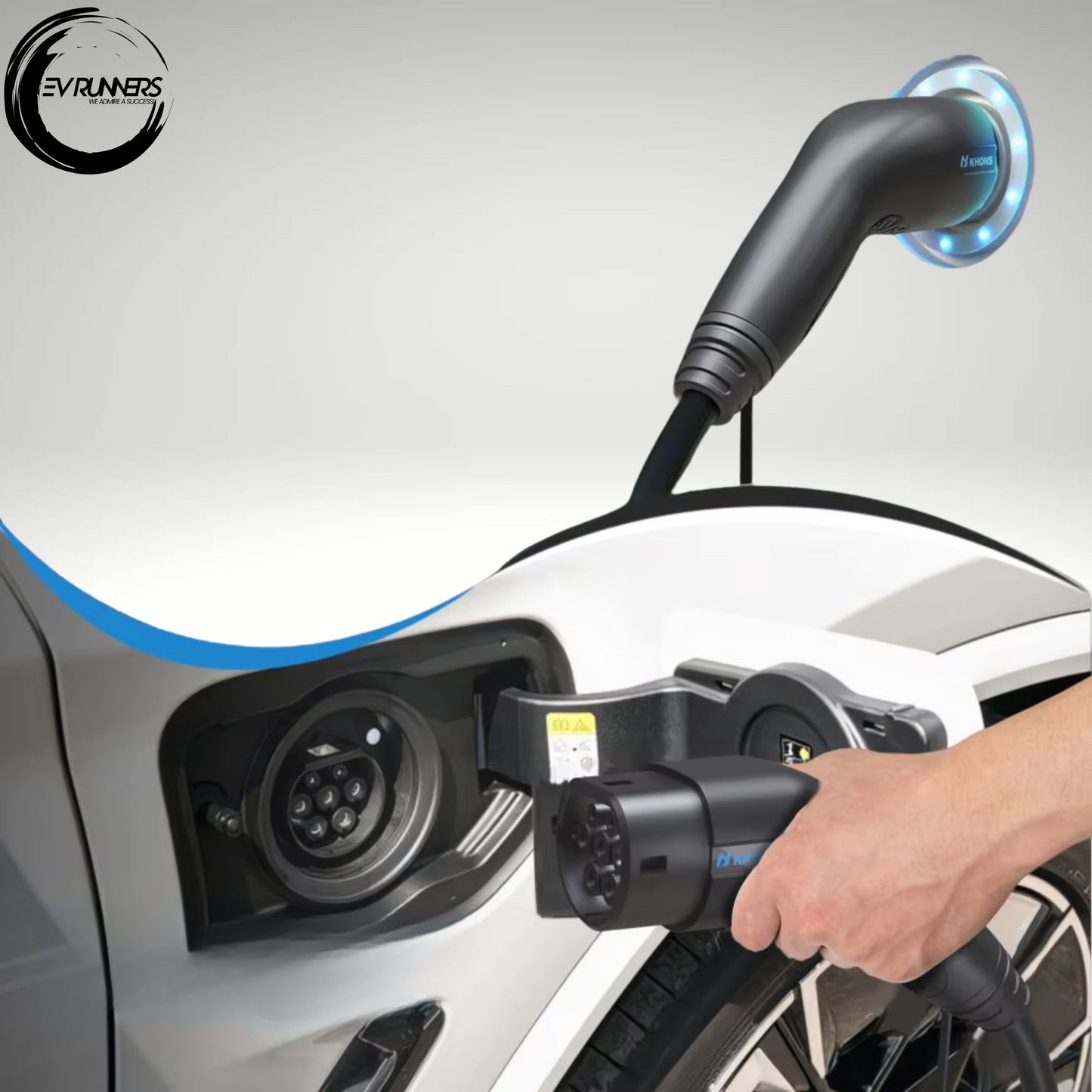

Type 2 to Type 2 EV Charging Cable – 22kW | 3-Phase | 32A | 5m | IEC 62196-2
Power your EV with confidence using our Type 2 to Type 2 Charging Cable, designed for high-performance, safe, and reliable electric vehicle charging. Built with robust materials and certified to international standards, this 3-phase 22kW cable is compatible with all Type 2 electric and plug-in hybrid vehicles that follow the IEC 62196-2 standard.
🔌 Key Features
- High Power Output: Supports up to 22kW charging with 3-phase 32A current for fast and efficient charging.
- Universal Compatibility: Works with all Type 2 EVs and PHEVs using the IEC 62196-2 standard.
- Premium Build Quality: Durable TPU cable jacket, pure copper wiring, and silver-plated connectors for optimal performance and longevity.
- Advanced Safety: IP65 waterproof, flame-retardant housing, and built-in protections including overcurrent, overvoltage, undervoltage, overheating, and leakage protection.
- Extreme Durability: Rated for 10,000+ plug cycles and built with high-strength ABS+PC materials.
- Flexible Length: 5-meter cable provides generous reach between vehicle and charging station.
- Portable Design: Lightweight at just 3kg, easy to carry and store.
🛡️ Certified Quality & Warranty
All Khons cables are CE and TÜV certified to meet international quality standards. Backed by a 2-year warranty and free lifetime software services, your purchase is secure and supported.
Specifications
- Power: 22kW
- Current: 6A–32A
- Voltage: 110V–480V
- Phases: 3-phase
- Plug Type: Type 2 (IEC 62196-2)
- Cable Length: 5 meters
- Cable Spec: 5×6mm² + 1×0.75mm² / 2×0.5mm²
- Material: TPU cable, ABS+PC housing, copper alloy with silver plating
- IP Rating: IP65
- Fire Rating: UL94V-0
- Operating Temp: -30°C to +50°C
- Weight: 3kg
- Durability: >10,000 insertions
- Withstand Voltage: 2000V
- Warranty: 2 years
- Origin: Mainland China
